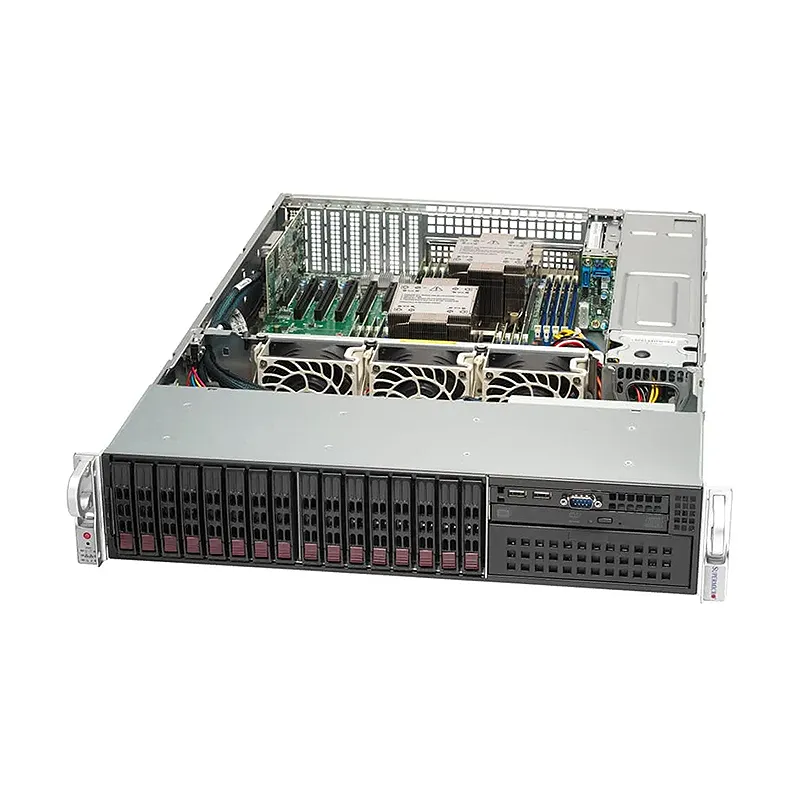

Mainstream SuperServer SYS-221P-C9RT

**Mainstream SuperServer SYS-221P-C9RT**
A high-density 2U rackmount server designed for demanding enterprise workloads, featuring Intel Xeon Scalable Processors (3rd Gen) for exceptional compute power. Supports up to four double-width GPUs, enabling accelerated AI/ML, virtualization, and HPC tasks. Offers 24 hot-swap NVMe/SATA bays for ultra-fast storage scalability and dual 25GbE ports for low-latency networking. Built with redundant hot-swap power supplies and cooling for uninterrupted operation. Ideal for data centers prioritizing performance, flexibility, and reliability in cloud, analytics, or GPU-driven environments. **USP:** Balances massive storage, GPU density, and enterprise-grade resilience in a compact form factor.

$Quote1 Piece(MOQ)

SKU SYS-221P-C9RT Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-221P-C9RT

Motherboard

  • Super X13DEI-T

Processor

  • CPU
    Dual Socket E (LGA-4677)
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

On-Board Devices

  • Chipset
    Intel C741
  • Network Connectivity
    2 RJ45 10GbE

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 2.0 ports(front)
    4 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • DOM
    2 Super DOM (Disk on Module) ports

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-213BTS-R1K23LPBP3-1

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    24.8″ (630 mm)
  • Package
    11″ (H) x 29″ (W) x 38.7″ (D)
  • Weight
    Gross Weight: 63 lbs (28.8 kg)
    Net Weight: 38 lbs (17.4 kg)
  • Available Color
    Black

Front Panel

  • LED
    HDD activity
    Network activity
    Power status
    System information (overheat/UID)
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 4 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x8 LP slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 16 bays 4 front hot-swap 2.5″ NVMe*/SAS drive bays 4 front hot-swap 2.5″ SAS drive bays 8 front hot-swap 2.5″ SATA* drive bays
    (*NVMe/SATA support may require additional storage controller and/or cables)
  • M.2
    2 M.2 NVMe slots (M-key)
  • Peripheral Bays
    1 slim DVD bay (optional)

System Cooling

  • Fans
    3x 8cm heavy duty fans with optimal fan speed control

Power Supply

  • 2x 1200W
    2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL)
    76 x 40 x 336 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization
Max GPU

2
CPU Type

5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors
Total PCI-E Slots

5
Drives

16
Drive Form Factors

2.5"
Form Factor

2U
Generation

X13
Interface

NVMe (Optional), SAS (Native), SATA (Native)
LED

HDD activityNetwork activityPower statusSystem information (overheat/UID)
Network Connectivity

2 RJ45 10GbEView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI Flash EEPROM
Package

11" (H) x 29" (W) x 38.7" (D)
Depth

24.8" (630 mm)
Fans

3x 8cm heavy duty fans with optimal fan speed control
Height

3.5" (89 mm)
Buttons

Power On/OffSystem Reset
Peripheral Bays

1 slim DVD bay (optional)
M.2

2 M.2 NVMe slots (M-key)
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Note

Supports up to 300W TDP CPUs (Air Cooled)
Weight

Gross Weight: 63 lbs (28.8 kg)Net Weight: 38 lbs (17.4 kg)
Drive Bays Configuration

Default: Total 16 bays(*NVMe/SATA support may require additional storage controller and/or cables)
USB

2 USB 2.0 ports(front)4 USB 3.0 ports(rear)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
CPU

Dual Socket E (LGA-4677)5th Gen Intel Xeon
Chipset

Intel C741
Environmental Spec.
DOM

DOM
