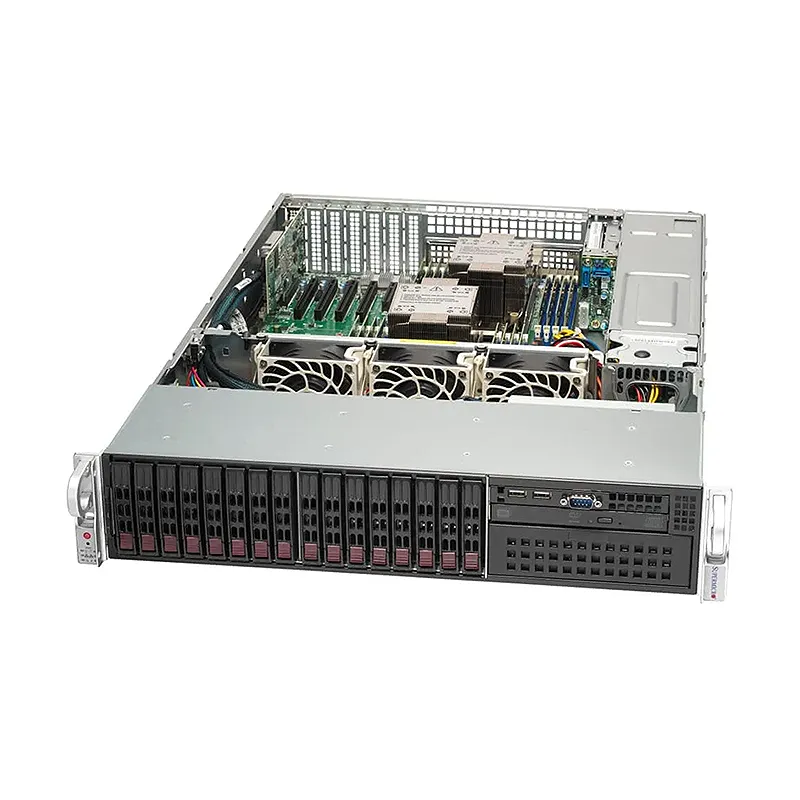

Mainstream SuperServer SYS-221P-C9R

**Mainstream SuperServer SYS-221P-C9R**
A high-performance 2U rack server designed for enterprise and data center workloads, featuring 4th Gen Intel Xeon Scalable processors (dual-socket), 32 DDR5 DIMM slots, and support for up to 24 hot-swap drives for massive storage scalability. Key highlights include PCIe 5.0 compatibility for accelerated data throughput, redundant power supplies for uninterrupted operation, and advanced thermal management for optimal efficiency. Built for AI, cloud, and storage-intensive tasks, it offers robust remote management (IPMI) and TPM 2.0 security. Combines cutting-edge hardware, exceptional density, and enterprise-grade reliability, making it ideal for businesses prioritizing scalability, future-proof performance, and mission-critical uptime.

$Quote1 Piece(MOQ)

SKU SYS-221P-C9R Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-221P-C9R

Motherboard

  • Super X13DEI

Processor

  • CPU
    Dual Socket E (LGA-4677)
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM

On-Board Devices

  • Chipset
    Intel C741
  • Network Connectivity
    2 RJ45 1GbE

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 2.0 ports(front)
    4 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
    1 COM port(Front)
  • DOM
    2 Super DOM (Disk on Module) ports
  • TPM
    1 TPM Onboard/port 80

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-213BTS-R1K23LPBP3-1

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    24.8″ (630 mm)
  • Package
    11″ (H) x 29″ (W) x 38.7″ (D)
  • Weight
    Gross Weight: 63 lbs (28.8 kg)
    Net Weight: 38 lbs (17.4 kg)
  • Available Color
    Black

Front Panel

  • LED
    HDD activity
    Network activity
    Power status
    System information (overheat/UID)
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 4 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x8 LP slot
  • M.2
    2 M.2 PCIe 4.0 x2 NVMe slots (M-key)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 16 bays 4 front hot-swap 2.5″ NVMe*/SAS drive bays 4 front hot-swap 2.5″ SAS drive bays 8 front hot-swap 2.5″ SATA drive bays
    (*NVMe support may require additional storage controller and/or cables)
  • M.2
    2 M.2 NVMe slots (M-key)
  • Peripheral Bays
    1 slim DVD bay (optional)

System Cooling

  • Fans
    3x 8cm heavy duty fans with optimal fan speed control

Power Supply

  • 2x 1200W
    2x 1200W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL)
    76 x 40 x 336 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

Application and data serving, Compute Intensive Applications, Enterprise Server, Virtualization
Max GPU

2
CPU Type

5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors
Total PCI-E Slots

5
Drives

16
Drive Form Factors

2.5"
Form Factor

2U
Generation

X13
Interface

NVMe (Optional), SAS (Native), SATA (Native)
LED

HDD activityNetwork activityPower statusSystem information (overheat/UID)
Serial

1 COM port(Rear)1 COM port(Front)
Network Connectivity

2 RJ45 1GbEView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI Flash EEPROM
Package

11" (H) x 29" (W) x 38.7" (D)
Depth

24.8" (630 mm)
Fans

3x 8cm heavy duty fans with optimal fan speed control
Height

3.5" (89 mm)
Buttons

Power On/OffSystem Reset
Peripheral Bays

1 slim DVD bay (optional)
M.2

2 M.2 NVMe slots (M-key)
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Note

Supports up to 300W TDP CPUs (Air Cooled)
Weight

Gross Weight: 63 lbs (28.8 kg)Net Weight: 38 lbs (17.4 kg)
Drive Bays Configuration

Default: Total 16 bays(*NVMe support may require additional storage controller and/or cables)
USB

2 USB 2.0 ports(front)4 USB 3.0 ports(rear)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Onboard/port 80
CPU

Dual Socket E (LGA-4677)5th Gen Intel Xeon
Chipset

Intel C741
Environmental Spec.
DOM

DOM
