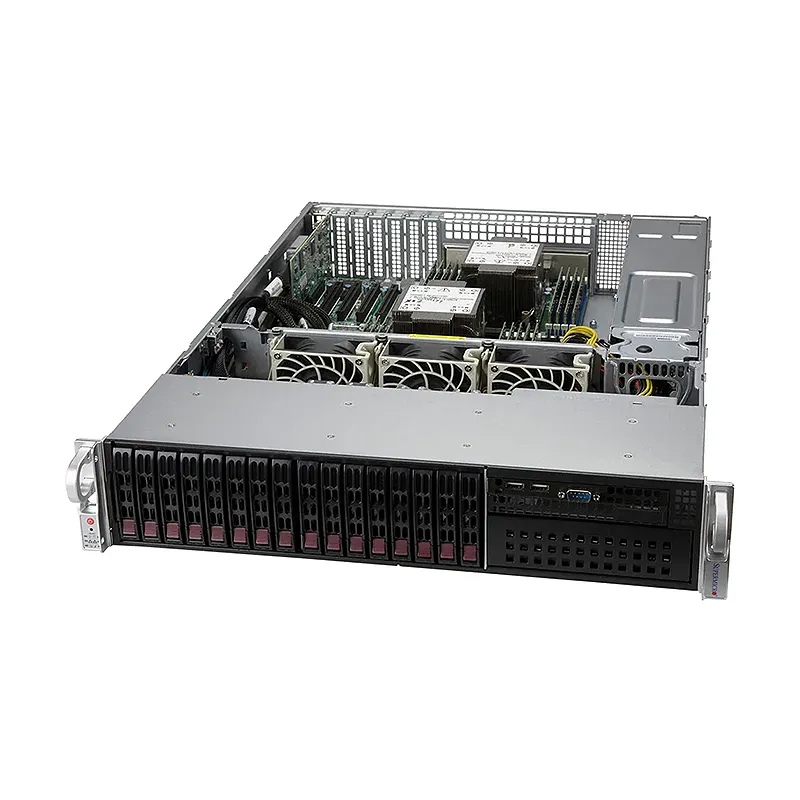

* NOTE: Image may not exactly match the product

Mainstream SuperServer SYS-220P-C9RT

**Mainstream SuperServer SYS-220P-C9RT**
A high-density 2U rackmount server designed for demanding workloads, featuring dual Intel Xeon Scalable processors (up to 28 cores each) and support for 3TB DDR4 memory, ensuring exceptional performance for virtualization, cloud, and data-intensive tasks. Offers 24 hot-swappable drive bays with NVMe/SSD/HDD flexibility, dual 10G LAN ports, and PCIe expansion for GPUs or storage adapters. Redundant power supplies and cooling systems maximize uptime, while a tool-less design simplifies maintenance. Ideal for scalable, energy-efficient enterprise environments requiring reliability, high throughput, and future-proof adaptability.

$Quote1 Piece(MOQ)

SKU SYS-220P-C9RT Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-220P-C9RT

Motherboard

  • Super X12DPi-NT6

Processor

  • CPU
    Dual Socket P+ (LGA-4189)
    3rd Gen Intel Xeon Scalable processors
  • Core Count
    Up to 36C/72T; Up to 60MB Cache per CPU

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Supports Intel Optane persistent memory 200 series

On-Board Devices

  • Chipset
    Intel C621A
  • Network Connectivity
    2 RJ45 10GbE

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 2.0 ports(front)
    4 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • DOM
    2 Super DOM (Disk on Module) ports

System BIOS

  • BIOS Type
    AMI 32MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    2U Rackmount
  • Model
    CSE-213BTS-R1K23LPBP3-1

Dimensions and Weight

  • Height
    3.5″ (89 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    24.8″ (630 mm)
  • Package
    11″ (H) x 29″ (W) x 38.7″ (D)
  • Weight
    Gross Weight: 63 lbs (28.8 kg)
    Net Weight: 38 lbs (17.4 kg)
  • Available Color
    Black

Front Panel

  • LED
    HDD activity
    Network activity
    Power status
    System information (overheat/UID)
  • Buttons
    Power On/Off
    System Reset

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 16 bays 8 front hot-swap 2.5″ SAS drive bays 4 front hot-swap 2.5″ SATA drive bays 4 front hot-swap 2.5″ NVMe*/SATA drive bays
    (*NVMe support may require additional storage controller and/or cables)
  • M.2
    1 M.2 NVMe slot (M-key)
  • Peripheral Bays
    1 5.25″ DVD bay (optional)

System Cooling

  • Fans
    3 heavy duty fans with optimal fan speed control

Power Supply

  • 1x 1200W
    1x 1200W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL)
    76 x 40 x 336 mm
    Input
    1000W: 100-127Vac
    1000W: 100-127Vac / 50-60Hz
    1200W: 200-240Vac
    1200W: 200-240Vac / 50-60Hz
    1200W: 200-240Vdc / 50-60Hz (for CCC only)
    +12V
    Max: 83A / Min: 0A (100Vac-127Vac)
    Max: 100A / Min: 0A (200Vdc-240Vdc)
    Max: 100A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

Application-Optimized Solutions, Data Center Optimized, Database Processing and High Density Storage, Enterprise Server, High Performance Computing
Max GPU

2
CPU Type

3rd Gen Intel Xeon Scalable processors
Total PCI-E Slots

5
Drives

16
Drive Form Factors

2.5"
Form Factor

2U
Generation

X12
Interface

NVMe (Optional), SAS (Native), SATA (Native)
LED

HDD activityNetwork activityPower statusSystem information (overheat/UID)
Network Connectivity

2 RJ45 10GbEView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI Flash EEPROM
Package

11" (H) x 29" (W) x 38.7" (D)
Depth

24.8" (630 mm)
Fans

3 heavy duty fans with optimal fan speed control
Height

3.5" (89 mm)
Buttons

Power On/OffSystem Reset
Peripheral Bays

1 5.25" DVD bay (optional)
M.2

1 M.2 NVMe slot (M-key)
Memory

Slot Count: 16 DIMM slotsMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMSupports Intel Optane persistent memory 200 seriesView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Core Count

Up to 36C/72T; Up to 60MB Cache per CPU
Note

Supports up to 270W TDP CPUs (Air Cooled)
Weight

Gross Weight: 63 lbs (28.8 kg)Net Weight: 38 lbs (17.4 kg)
Drive Bays Configuration

Default: Total 16 bays(*NVMe support may require additional storage controller and/or cables)
USB

2 USB 2.0 ports(front)4 USB 3.0 ports(rear)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
CPU

Dual Socket P+ (LGA-4189)3rd Gen Intel Xeon Scalable processors
Chipset

Intel C621A
Environmental Spec.
DOM

DOM

Q1: ls the product original ?

A1 : Yes, all of our products are orginal. We have our own QC team who will strictly check product quality before shipment.

Q2. Payment methods?

We accept T/T, PayPal, Alibaba ect.

Q3. Shipping methods?

We have long term business-ship with FedEx, UPS and DHL with favorble price. You can choose any shipping method mentioned above based on your ease. You can also use your own shipping account or shipping forwarder.

Q4. How long is the lead time?

Usually 1-3 working days after payment. Feel free to send me exact models for checking.

Q5. How long is the warranty period?

Different products have different warranty periods. Usually 1~3 years warranty.
