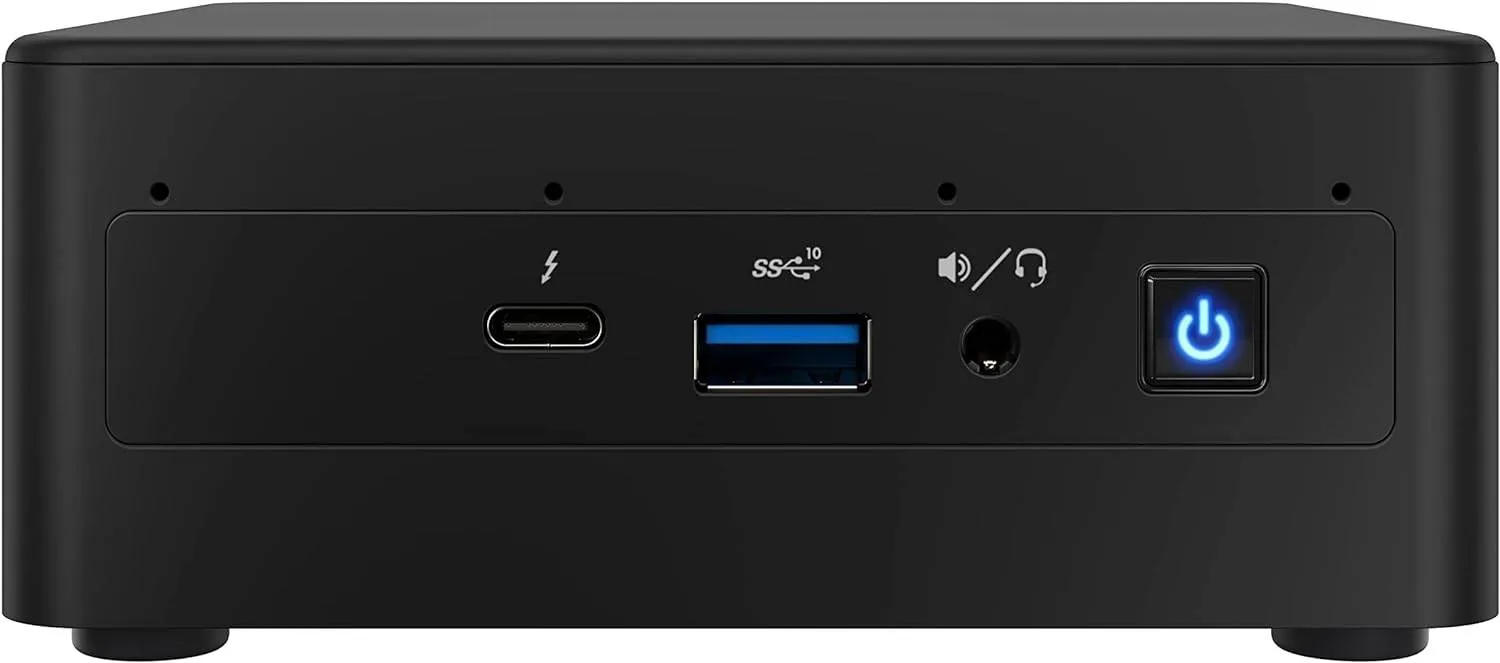

Intel NUC 11 Performance kit-NUC11PAHi70Z

Other features: Intel NUC Kit with 11th Generation Intel Core Processors Dual HDMI 2.0b w/HDMI CEC | Dual DP 1.4a via Type C

$Quote1 Piece(MOQ)

SKU NUC11PAHi70Z Category Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:
Max Memory Size (dependent on memory type)

64 GB

Board Number

NUC11PABi7

Application

PC

Intel Rapid Storage Technology

Yes

Integrated Wireless

Intel Wi-Fi 6 AX201

Total Threads

8

Product Name

Intel NUC 11 Performance kit C NUC11PAHi70Z

Warranty

1 Year

USB 3.0 Configuration (External + Internal)

2B 2F + 1

USB 2.0 Configuration (External + Internal)

0 + 1

Memory Types

DDR4-3200 1.2V SO-DIMM

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Integrated Bluetooth

Yes

Brand

Intel

Integrated Graphics

Yes

Removable Memory Card Slot

SDXC with UHS-II support

Total # of SATA Ports

2

# of USB Ports

7

Intel HD Audio Technology

Yes

Graphics Output

HDMI 2.0b; USB-C (DP1.4); MiniDP 1.4

Supported Operating Systems

Windows 11, 64-bit*, Windows 10, 64-bit*

Processor Included

Intel Core i7-1165G7 Processor (12M Cache, up to 4.70 GHz)

Total Cores

4

# of Internal Drives Supported

2

Audio (back channel + front channel)

7.1 digital (HDMI mDP); L+R out, mono mic in (F)

# of Thunderbolt™ Ports

2x Thunderbolt 3

M.2 Card Slot (storage)

22×80

Max # of SATA 6.0 Gb/s Ports

2

DC Input Voltage Supported

19 VDC

Product Collection

Intel NUC Kit with 11th Generation Intel Core Processors

Code Name

Products formerly Panther Canyon

Products Status

New

Max # of Memory Channels

2

USB Configuration

2x front (Type-A, Type-C) and 3x rear USB 3.2 Gen2 (2x Type-A, Type-C); USB 2.0, USB 3.1 Gen2 via internal headers

Socket

Soldered-down BGA

TPM

No

Consumer Infrared Rx Sensor

Yes

Lithography

10 nm

Embedded Options Available

No

Max Turbo Frequency

4.70 GHz

ECC Memory Supported

No

Intel Platform Trust Technology (Intel PTT)

Yes

Integrated LAN

Intel Ethernet Controller i225-V

Internal Drive Form Factor

M.2 and 2.5" Drive

PCI Express Configurations

M.2 slot with PCIe X4 lanes

PCI Express Revision

Gen4

Packaging Details

BOX

Max # of DIMMs

2

USB Revision

2.0, 3.2 Gen2

Chassis Dimensions

117 x 112 x 51mm

Max Memory Bandwidth

51.2 GB/s

P/N

NUC11PAHi70Z
