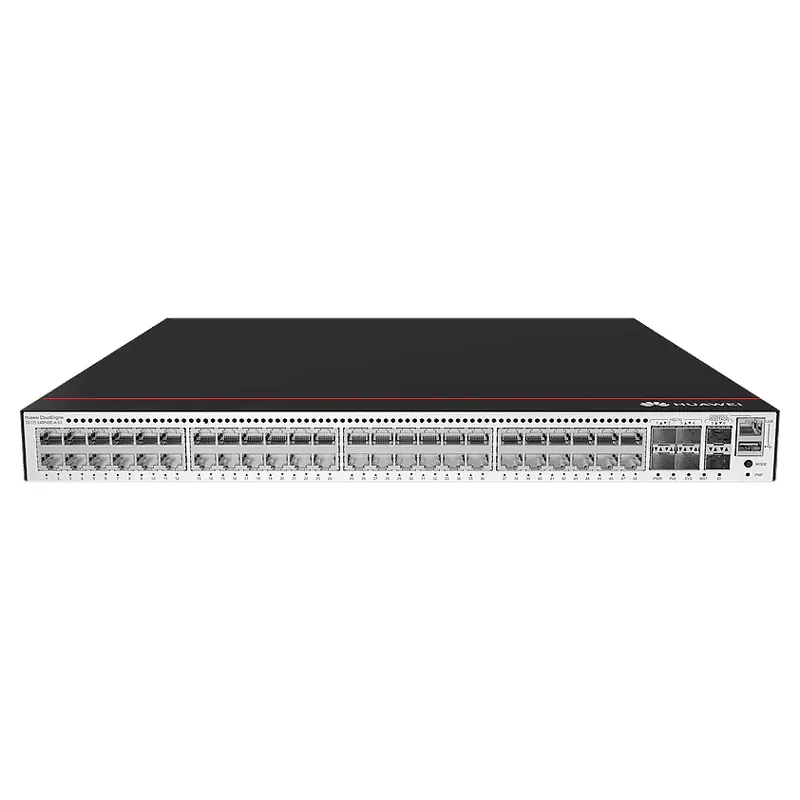

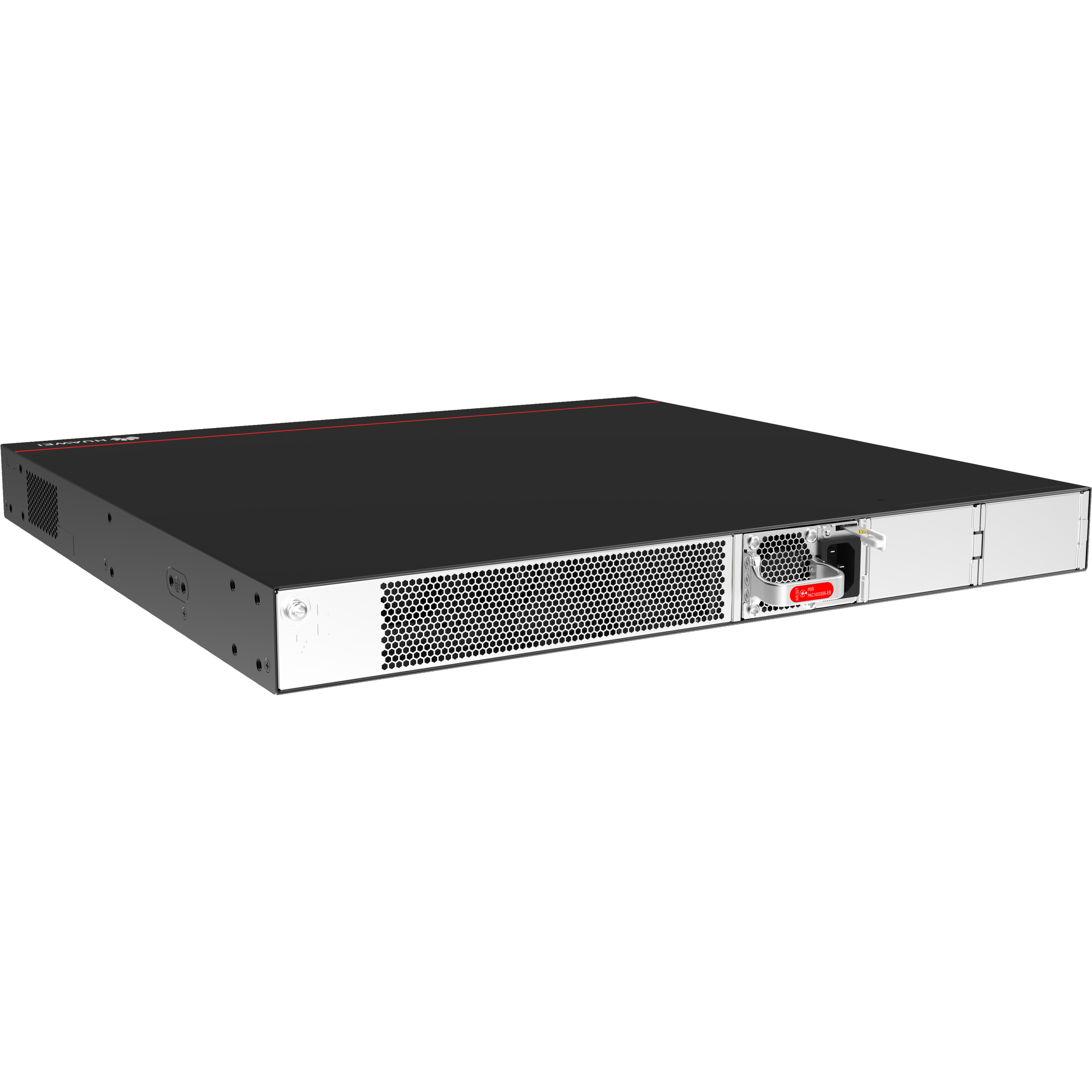

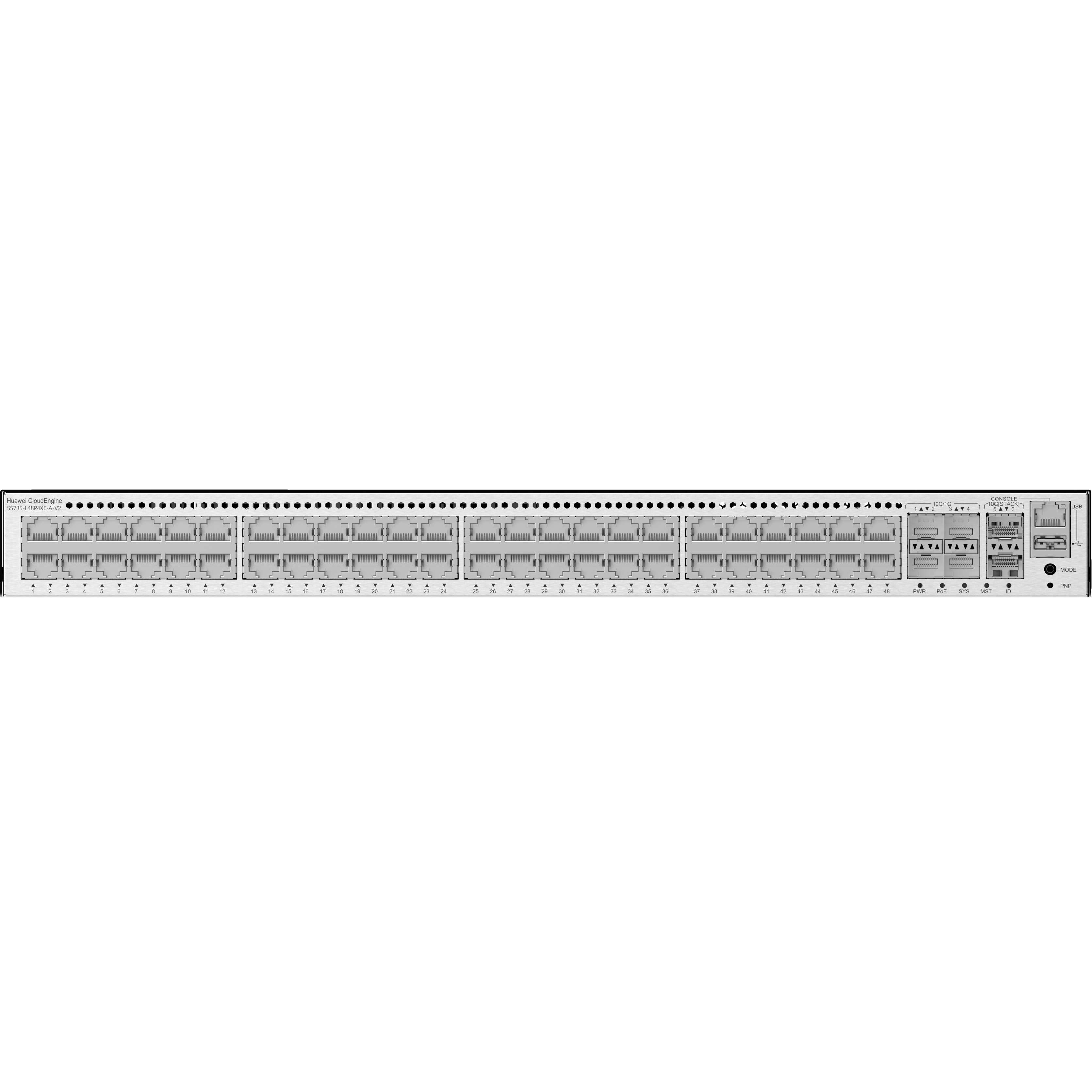

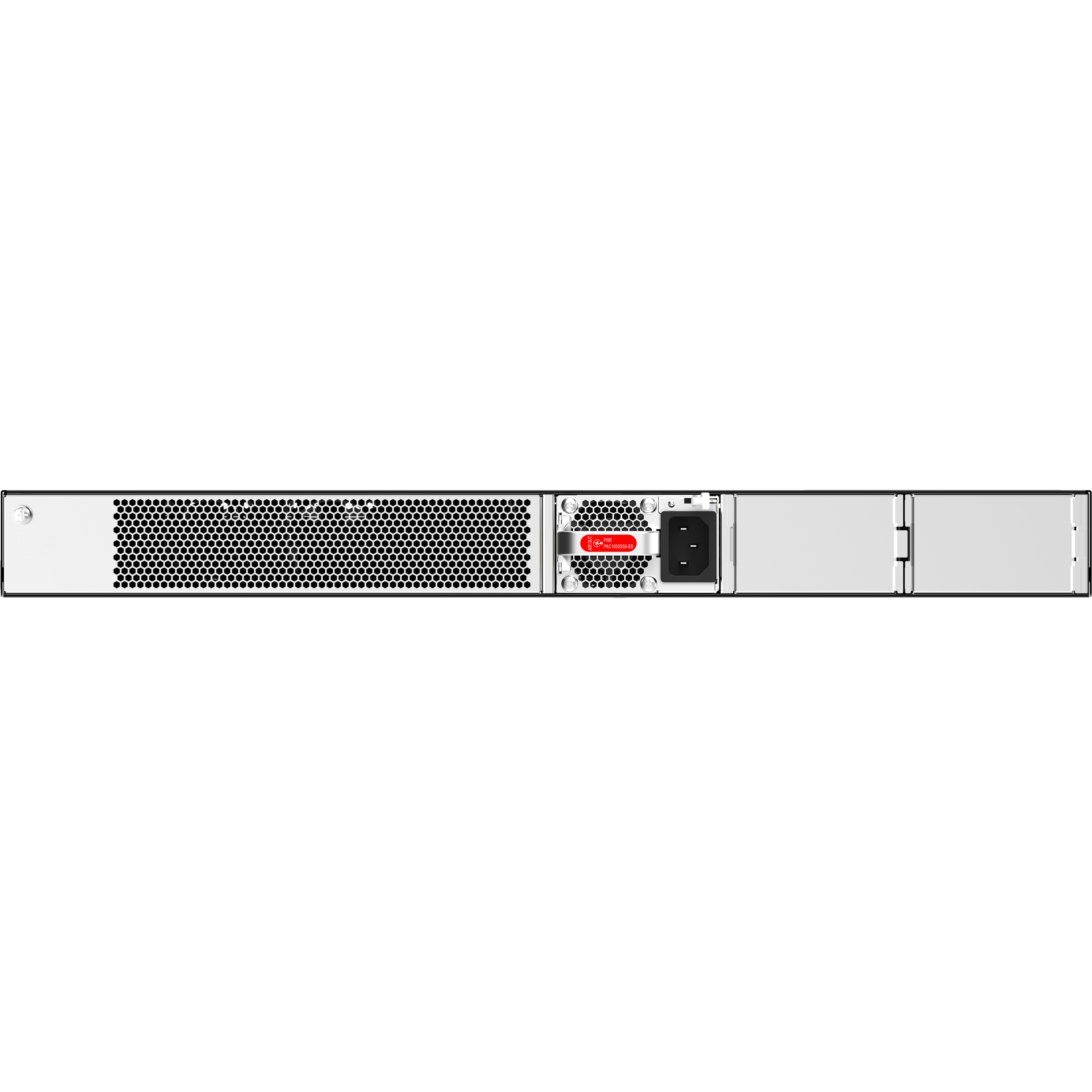

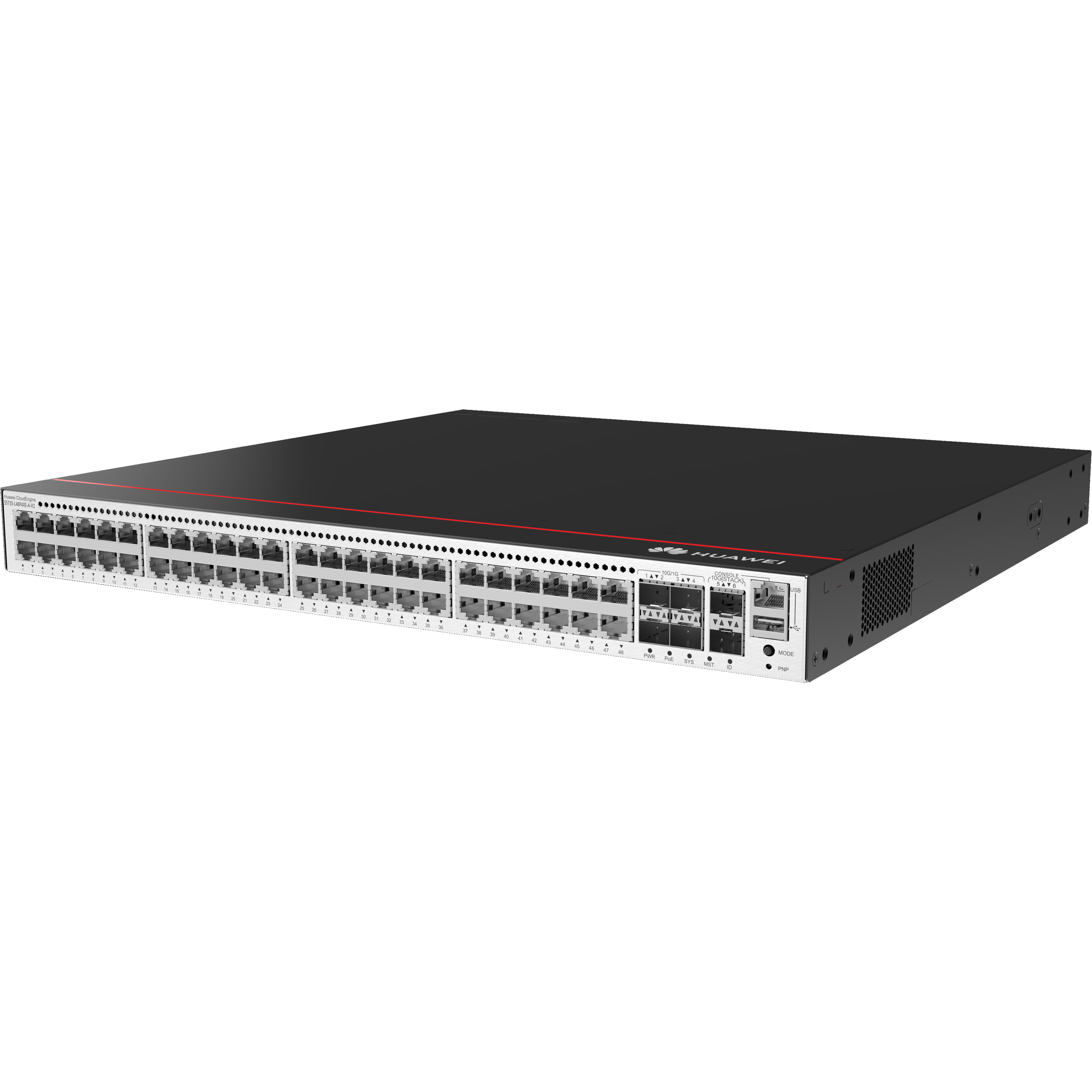

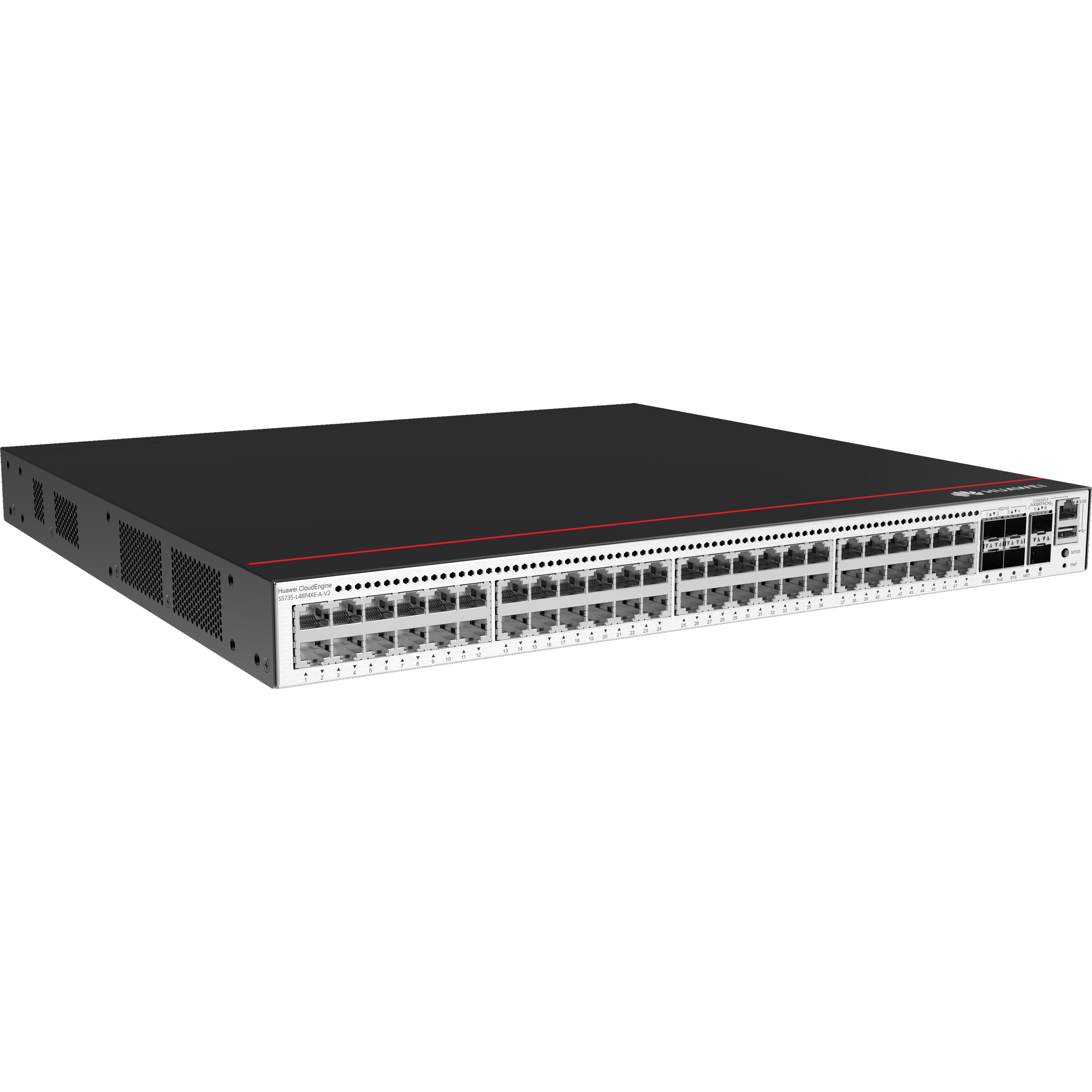

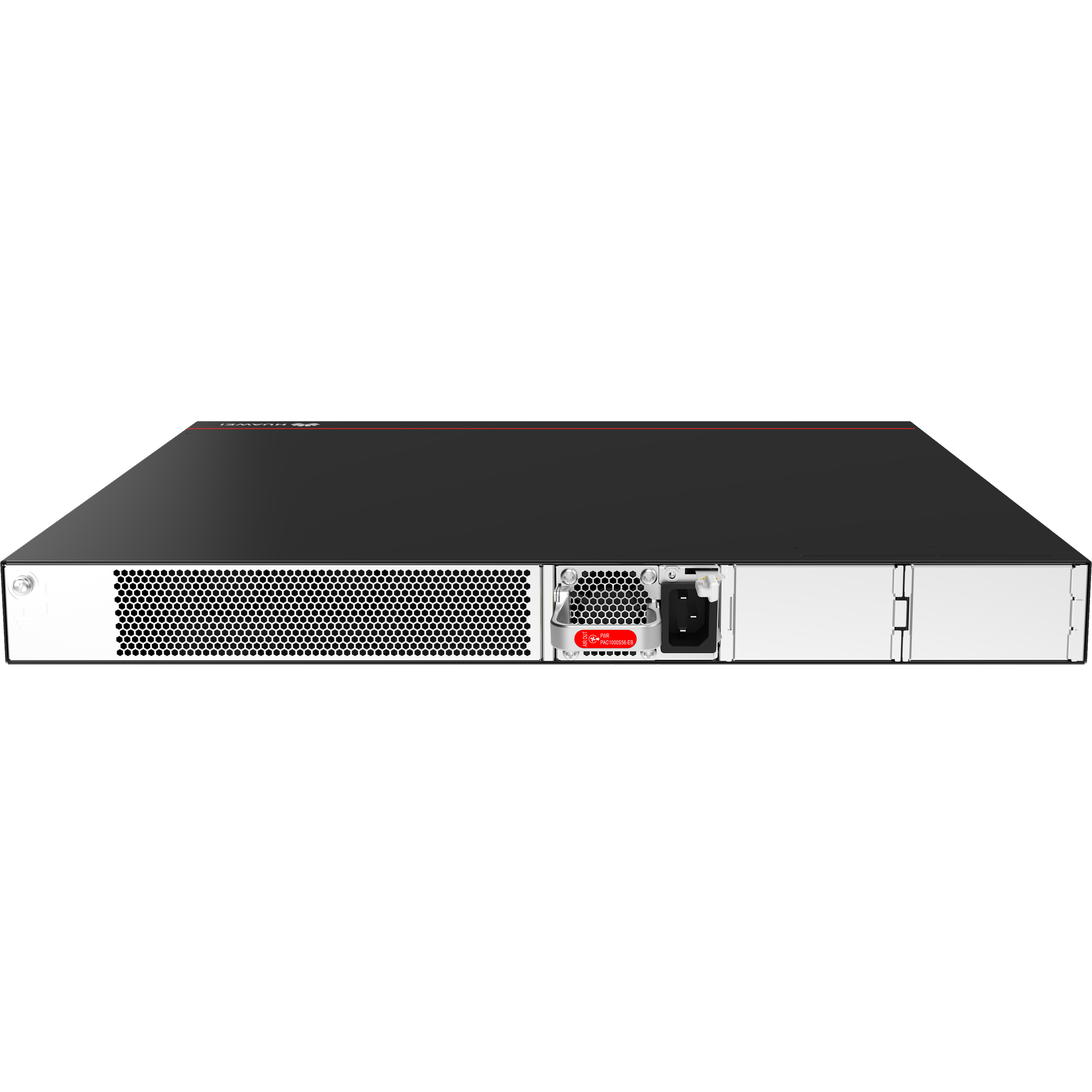

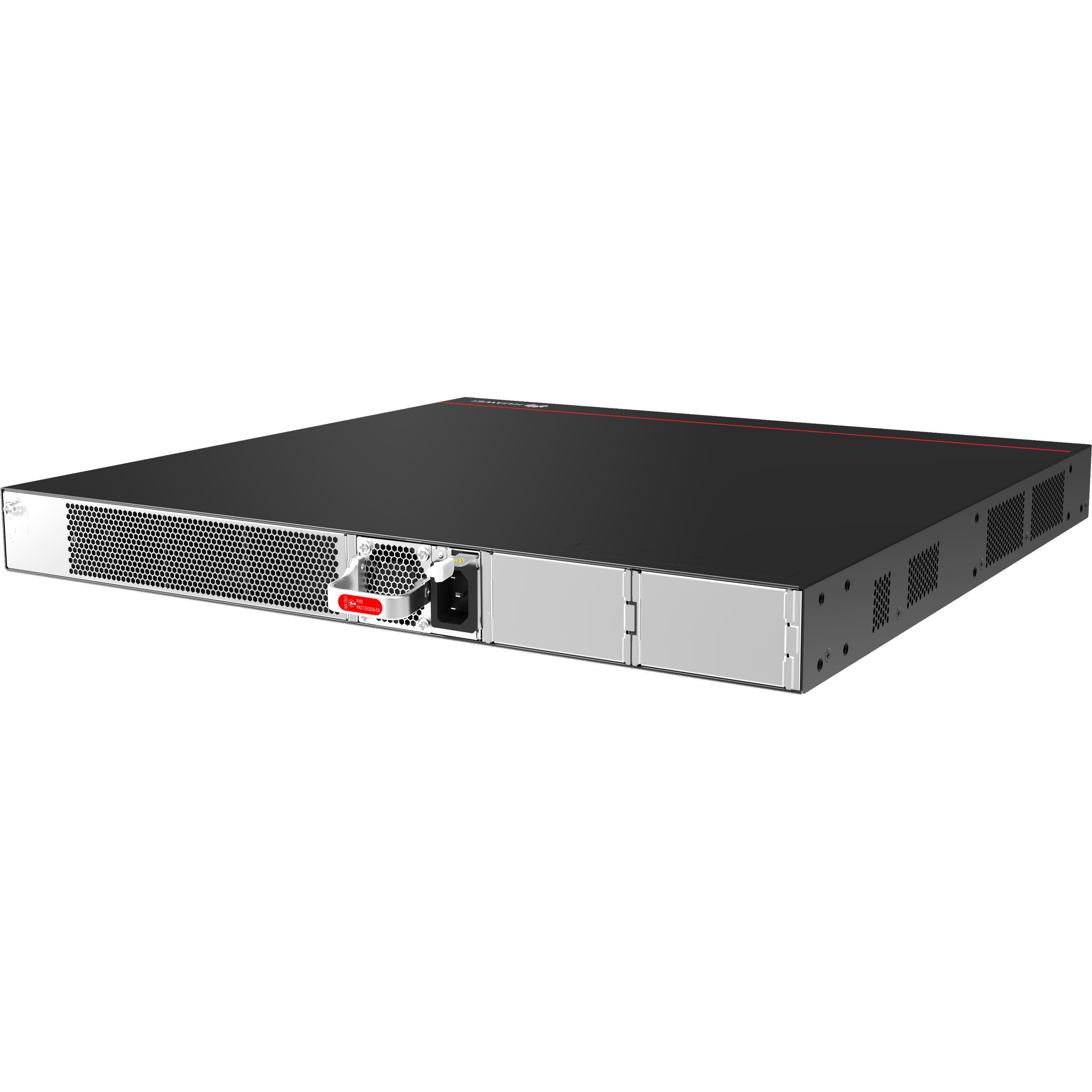

Huawei S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*AC power)

$Quote1 Pieces ( MOQ )

Categories , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

PN

98012120

Model

S5735-L48P4XE-A-V2

Brand

Huawei

Warranty

1 Year

Height [mm]

43.6 mm

Depth [mm]

420.0 mm

Wide [mm]

442.0 mm

Chassis height [U]

1

Weight with packaging

8.90 (19.62)

Weight without packaging

6.10 (13.45)

Maximum power consumption [W]

– Without PoE: 76.66 W/- Full PoE load: 993.74 W (PoE: 846 W)

Typical power consumption [W]

54.78

Maximum heat dissipation [BTU/h]

– Without PoE: 261.57/- Full PoE load: 3390.74

Heat dissipation mode

Air cooling for heat dissipation, intelligent fan speed adjustment

Typical heat dissipation [BTU/h]

186.91

Power supply mode

Pluggable power supply

Input voltage range [V]

AC input: 90–290 V AC; 45–65 Hz

Rated input voltage [V]

AC input: 100–240 V AC; 50/60 Hz

Maximum input current [A]

The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.

Number of power slots

1

Number of card slots

0

Memory

2 GB

Flash memory

1 GB in total. To view the available flash memory size, run the display version command.

Redundant power supply

Not supported

Types of fans

Built-in

Noise at normal temperature (acoustic pressure)

55

Noise at normal temperature (acoustic power)

67

Airflow direction

Air intake from left, front, and right and air exhaust from rear

Long-term operating temperature

-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)

Storage temperature

–40°C to +70°C (–40°F to +158°F)

Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)

Storage altitude

0-5000 m (0-16404 ft.)

Long-term operating altitude

0–5000 m (0–16404 ft.)

MTBF [year]

46.89

MTTR [h]

2

Availability

>0.99999

Maximum number of physical ports on the entire device

54

Maximum number of 100GE ports

0

Maximum number of 40GE ports

0

Maximum number of 25GE ports

0

Maximum number of 10GE ports

4

Maximum number of GE ports

52

Maximum number of FE ports

48

10GE optical interface

4

1000M electrical interface

48

USB

Supported

Console port

RJ45

Eth Management port

Not supported

Service port surge protection

Common mode: ±6 kV

Power supply surge protection

Differential mode: ±6 kV; common mode: ±6 kV

RPS input

Not supported

PoE

Supported

PoE power supply

Supported
