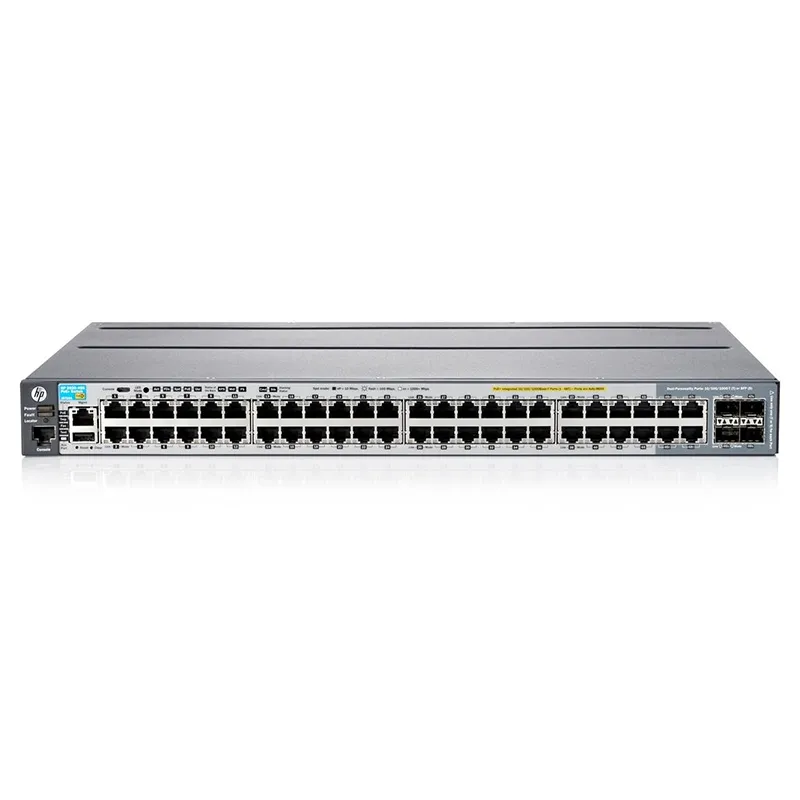

HPE Aruba 2920-48G-PoE+ 740W Switch (J9836A)

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

J9836A Overview

Aruba 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office networks. These energy efficient basic Layer 3 switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. The 2920 supports modular stacking (4 chassis), redundant power, 10GbE, RIP and Access OSPF routing, Tunneled node, PoE+, ACLs, sFlow, robust QoS and IPv6. It is optimized for Software-defined Networking (SDN) with OpenFlow support. This model has 48x 10/100/1000 ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. This J9836A supports PoE and PoE+ Power over Ethernet with a power budget of 740 Watts. Units also each have two available port module slots, a stacking module slot, and an available redundant power supply slot.

Brand

HPE Aruba

Model

J9836A

Form Factor

Rack-mountable

Number of Ports

48

Power Over Ethernet

Yes (POE+)

Throughput

up to 130.9 Mpps

Switching Capacity

176 Gbps

Routing table size

2048 entries (IPv4), 256 entries (IPv6)

MAC address table size

16000 entries

Frequency

50/60 Hz

Maximum heat dissipation

482 BTU/hr (508.51 kJ/hr)

Maximum power rating

881 W

PoE power

740 W PoE+

Dimensions

17.42 (w) x 13.23 (d) x 1.73 (h) in

Operating temperature

32°F to 131°F (0°C to 55°C)

Humidity Range

15% to 95% (non-condensing)
