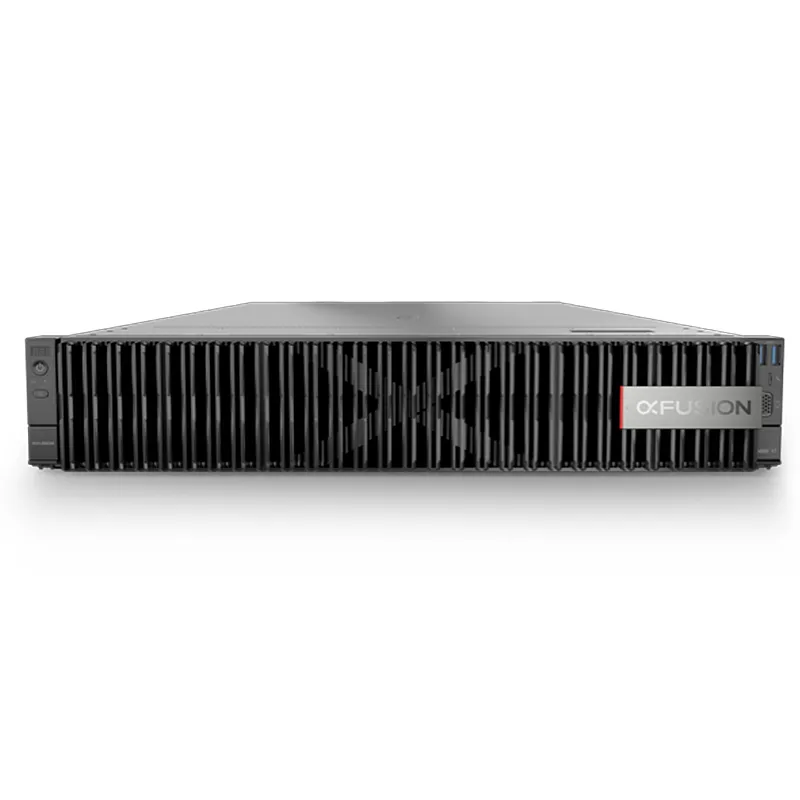

FusionServer 2488H V7

$Quote1 Pieces ( MOQ )

100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Submit Inquiry

Buy more, save more. Contact us for exclusive discounts!

• FusionServer 2488H V7 (2488H V7) is a 2U 4-socket rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom service applications.
• It is also ideal for various applications, such as databases, virtualization, and in-memory computing.
• 2488H V7 features high-performance computing, large-capacity storage, low power consumption, high reliability, easy management and deployment, and high virtualization application density.
Form Factor

2U rack server

Processors

2 or 4 x 4th Gen Intel® Xeon® Scalable processors with TDP up to 350 W per processor

Chipset

Emmitsburg PCH

Memory

64 x DDR5 DIMMs

Local Storage

Hot-swappable drives configurations:
• 8 x front 2.5″ SAS/SATA drives
• 25 x front 2.5″ SAS/SATA drives
• 4 x front 2.5″ SAS/SATA drives and 8 x NVMe SSDs,
Flash storage: 2 x M.2 SSDs, supporting hardware RAID

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures;

RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network

Multiple network expansion capabilities,
1 x OCP 3.0 NIC, supporting hot swap

PCIe Expansion

Up to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots

Fan Modules

6 x hot-swappable counter-rotating fans in N+1 redundancy

PSU

2 x hot-swappable Platinum/Titanium PSUs in 1+1 redundancy,
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC).
• 1500 W AC Platinum PSUs,
850 W (input: 100 V to 127 V AC),
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC),
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC),
• 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC).
• 2000 W AC Platinum/Titanium PSUs,
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC),
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC),
2150 W Titanium PSUs (input: 230 V to 240 V AC, or 230 V to 288 V DC).
• 3000 W AC Titanium PSUs,
2500 W (input: 200 V to 220 V AC, or 192 V to 200 V DC),
2900 W (input: 220 V to 230 V AC, or 200 V to 230 V DC),
3000 W (input: 230 to 240 V AC, or 230 to 288 V DC)

Management

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening.

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection

Certification

CE, UL, CCC, FCC, VCCI, and RoHS

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D)

Chassis with 2.5″ drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.)
