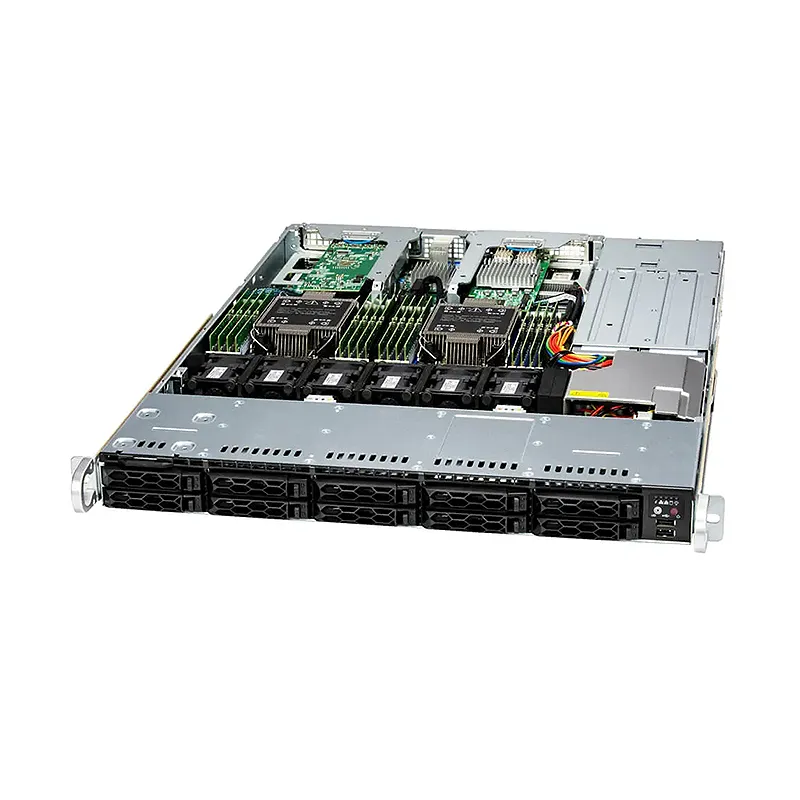

* NOTE: Image may not exactly match the product

CloudDC SuperServer SYS-121C-TN10R (Complete System Only

The CloudDC SuperServer SYS-121C-TN10R is a high-density, dual-node 1U server designed for cloud and enterprise workloads. Its compact chassis houses two independent nodes, each supporting dual Intel Xeon Scalable processors, multiple NVMe drives, and redundant power supplies, maximizing performance and space efficiency. Pre-configured for rapid deployment, it ensures energy-efficient operation, advanced remote management (IPMI), and scalability. Ideal for data centers, it reduces setup time, operational costs, and downtime while delivering robust security and high availability in demanding environments.

$Quote1 Piece(MOQ)

SKU SYS-121C-TN10R Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • SuperServerSYS-121C-TN10R

Motherboard

  • Super X13DDW-A

Processor

  • CPU
    Dual Socket E (LGA-4677)
    5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors
  • Core Count
    Up to 36C/72T; Up to 82.5MB Cache per CPU

GPU

  • Max GPU Count
    Up to 2 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: L4, A2
    Intel PCIe: Intel Data Center GPU Flex 140

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • Memory Voltage
    1.1V

On-Board Devices

  • SATA
    SATA (6Gbps) ; RAID 0/1/5/10 support
  • NVMe
    NVMe; RAID 0/1/5/10 support(VROC HW key required)
  • Chipset
    Intel C741
  • Network Connectivity
    Via AIOM

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.2 Gen1 Type-A ports(rear)
    2 USB 2.0 Type-A ports(front)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)
  • TPM
    1 TPM header

System BIOS

  • BIOS Type
    AMI 32MB SPI FLASH ROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-LB16TS-R0AWNP3

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    7.8″ (H) x 23.8″ (W) x 32.4″ (D)
  • Weight
    Gross Weight: 40 lbs (18.1 kg)
    Net Weight: 25 lbs (11.3 kg)
  • Available Color
    Black front & silver body

Front Panel

  • LED
    Drive activity
    Network activity
    Power status
    Universal Information
  • Buttons
    Power On/Off
    Unit Identifier (UID)

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 10 bays 10 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
    (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
  • M.2
    2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280; VROC required for RAID)

System Cooling

  • Fans
    6x 4cm heavy duty fans with optimal fan speed control
  • Air Shroud
    2 Air Shrouds

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    860W: 240Vdc / 50-60Hz
    +12V
    Max: 66.67A / Min: 0A (100Vac-127Vac)
    Max: 71.67A / Min: 0A (200Vac-240Vac)
    Max: 71.67A / Min: 0A (Vdc-240Vdc)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

CDN, Cloud Computing, Compact Server, Data Center Optimized, DNS & Gateway Servers, Edge Nodes, Firewall Application, Value IaaS, Web Server
Max GPU

2
CPU Type

5th Gen Intel Xeon/4th Gen Intel Xeon Scalable processors
Total PCI-E Slots

2
Drives

10
Drive Form Factors

2.5"
Form Factor

1U
Generation

X13
Interface

NVMe (Optional), SAS (Optional), SATA (Optional)
SATA

SATA (6Gbps) ; RAID 0/1/5/10 support
LED

Drive activityNetwork activityPower statusUniversal Information
Max GPU Count

Up to 2 single-width GPUs
Serial

1 COM port(Rear)
Supported GPU

A2Intel PCIe: Intel Data Center GPU Flex 140View GPU Options, NVIDIA PCIe: L4
Air Shroud

2 Air Shrouds
Network Connectivity

Via AIOMView AIOM OptionsView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 32MB SPI FLASH ROM
Package

7.8" (H) x 23.8" (W) x 32.4" (D)
Depth

23.5" (597 mm)
Fans

6x 4cm heavy duty fans with optimal fan speed control
Height

1.7" (43 mm)
Buttons

Power On/OffUnit Identifier (UID)
M.2

2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280; VROC required for RAID)
Memory

Slot Count: 16 DIMM slotsMax Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
ROHS

RoHS Compliant
Core Count

Up to 36C/72T; Up to 82.5MB Cache per CPU
NVMe

NVMe; RAID 0/1/5/10 support(VROC HW key required)View NVMe Options
Note

Supports up to 270W TDP CPUs (Air Cooled)**Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
Weight

Gross Weight: 40 lbs (18.1 kg)Net Weight: 25 lbs (11.3 kg)
Drive Bays Configuration

Default: Total 10 bays(*NVMe/SAS/SATA support may require additional storage controller and/or cables)
USB

2 USB 3.0 ports(rear)2 USB 2.0 ports(front)
Available Color

Black front & silver body
PCI-Express (PCIe) Configuration

Default
TPM

1 TPM Header
CPU

Dual Socket E (LGA-4677)5th Gen Intel Xeon
Chipset

Intel C741
Memory Voltage

1.1V
Environmental Spec.
