Product SKUs

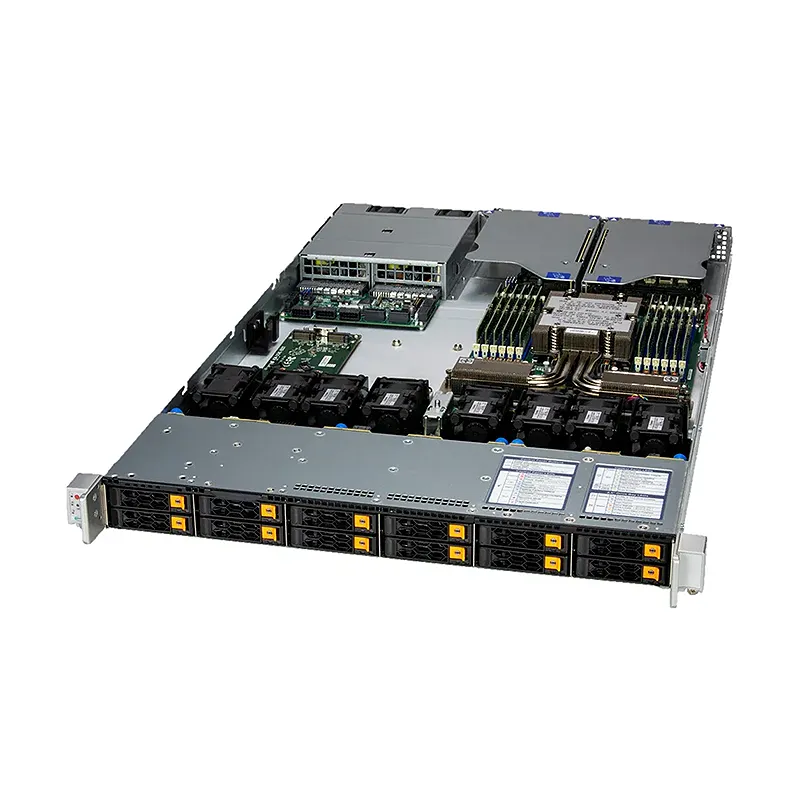

- A+ ServerAS -1116CS-TN
Motherboard
- Super H14SHM
Processor
- CPU
Single processor(s)
AMD EPYC 9005/9004 Series Processors - Core Count
Up to 192C/384T
GPU
- Max GPU Count
Up to 2 single-width GPUs
- CPU-GPU Interconnect
PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
- Memory
Slot Count: 12 DIMM slots/12 Channels
Max Memory (1DPC): Up to 4.5TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor)
Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC 9004 Series Processor)
On-Board Devices
- Chipset
System on Chip
- Network Connectivity
Via AIOM
- IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
- LAN
1 RJ45 1 GbE Dedicated BMC LAN port
- USB
1 USB 2.0 Type-A port(Rear)
1 USB 3.2 Gen1 Type-A port(Rear) - Video
1 VGA port(Rear)
- TPM
1 TPM header
System BIOS
- BIOS Type
AMI 64MB SPI Flash EEPROM
- BIOS Features
Plug and Play (PnP)
SMBIOS 3.5 or later
UEFI 2.8
USB Keyboard support
ACPI 6.5
Management
- Power configurations
ACPI/APM Power Management
Power-on mode control for AC power loss recovery
Power button override mechanism,
Chassis
- Form Factor
1U Rackmount
- Model
CSE-MD101TS-R000NDP
Dimensions and Weight
- Height
1.7″ (43 mm)
- Width
17.2″ (437 mm)
- Depth
29.4″ (747 mm)
- Package
8.1″ (H) x 23.8″ (W) x 40.6″ (D)
- Weight
Gross Weight: 49 lbs (22.2 kg)
Net Weight: 34 lbs (15.4 kg) - Available Color
Black
Front Panel
- LED
HDD activity
LAN1 activity
LAN2 activity
Power Failed LED
Power status
System information - Buttons
Power On/Off button
UID button
Expansion Slots
- PCI-Express (PCIe) Configuration
Default 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
- CXL Support
Up to 4 CXL 2.0 x16 devices
Drive Bays / Storage
- Drive Bays Configuration
Default: Total 8 bays 8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
Option A: Total 12 bays 12 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
(*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) - M.2
2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110)
System Cooling
- Fans
8 Counter-Rotating PWM 40x40x56mm Fan(s)
Power Supply
- 2x 1000W
2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies
Dimension (WxHxL)
73.5 x 40 x 185 mm
Input
800W: 100-127Vac / 50-60Hz
1000W: 200-240Vac / 50-60Hz
+12V
Max: 66.7A (100Vac-127Vac)
Max: A (100Vdc-240Vdc)
Max: 83A (200Vac-240Vac)
12V SB
Max: 2.1A
Output Type
Backplanes (gold finger)
Certification
Titanium Level
[
Test Report
]
