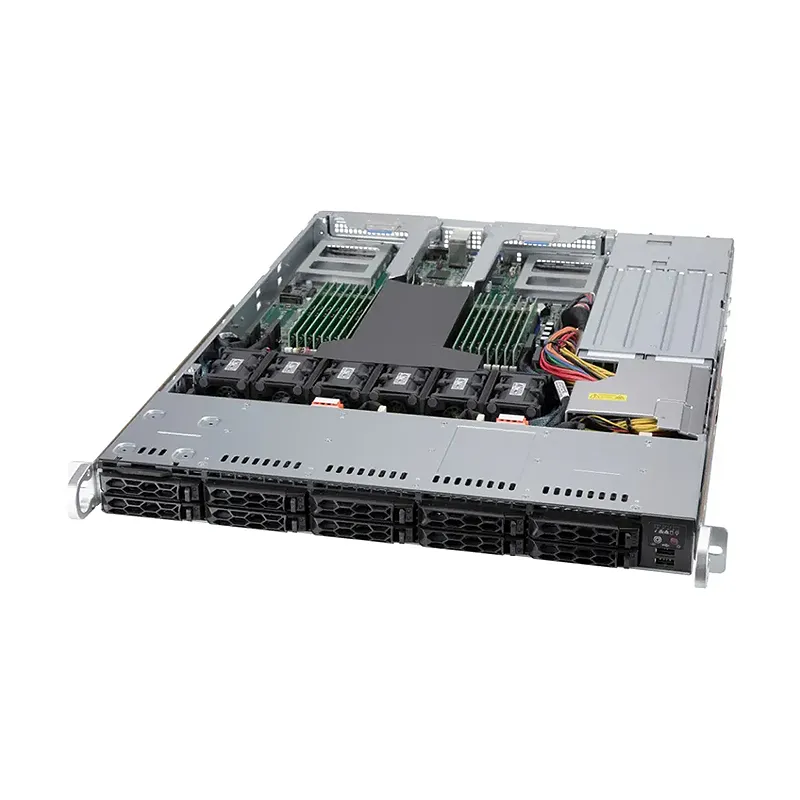

* NOTE: Image may not exactly match the product

CloudDC A+ Server AS -1114CS-TNR (Complete System Only

**CloudDC A Server AS-1114CS-TNR (Complete System)**
A high-performance, pre-configured server optimized for cloud and data center workloads. Features an AMD EPYC processor for scalable compute power, NVMe storage support, and high-speed 25GbE networking. Engineered for reliability with redundant power and advanced thermal management, it ensures uptime in dense environments. Pre-tested configurations enable rapid deployment, while integrated security and remote management tools simplify operations. Ideal for virtualization, AI, and large-scale cloud applications, it delivers energy efficiency and reduced TCO for enterprises seeking agile, future-ready infrastructure.

$Quote1 Piece(MOQ)

SKU AS -1114CS-TNR Categories , , , , Brand:
100% New and Genuine
Million Models In St
Bulk Order Rebate
Fast Delivery
Payment:
Shipping:

Product SKUs

  • A+ ServerAS -1114CS-TNRStandard version with PWS-860P-1R2 (Platinum Level)
  • A+ ServerAS -1114CS-TNR-EUEuropean version with PWS-861A-1R (Titanium Level)

Motherboard

  • Super H12SSW-AN6

Processor

  • CPU
    Single Socket SP3
    AMD EPYC 7002/7003 Series Processors
  • Core Count
    Up to 64C/128T

GPU

  • Max GPU Count
    Up to 2 double-width or 2 single-width GPUs
  • Supported GPU
    NVIDIA PCIe: T4, A2

System Memory

  • Memory
    Slot Count: 16 DIMM slots
    Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM

On-Board Devices

  • SATA
    SATA (6Gbps)
  • Chipset
    System on Chip
  • Network Connectivity
    Ethernet
  • IPMI
    Support for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

  • LAN
    1 RJ45 1 GbE Dedicated BMC LAN port
  • USB
    2 USB 3.0 ports(rear)
  • Video
    1 VGA port
  • Serial
    1 COM port(Rear)

System BIOS

  • BIOS Type
    AMI 256MB SPI Flash EEPROM

Management

  • Power configurations
    ACPI/APM Power Management

Chassis

  • Form Factor
    1U Rackmount
  • Model
    CSE-LB16TS-R860AWP

Dimensions and Weight

  • Height
    1.7″ (43 mm)
  • Width
    17.2″ (437 mm)
  • Depth
    23.5″ (597 mm)
  • Package
    7.7″ (H) x 23.7″ (W) x 31.8″ (D)
  • Weight
    Gross Weight: 40 lbs (18.14 kg)
    Net Weight: 25 lbs (11.34 kg)
  • Available Color
    Black

Front Panel

  • LED
    Device Activity
    LAN 1 Activity
    LAN 2 Activity
    Power status
    System information
  • Buttons
    Power On/Off
    UID button

Expansion Slots

  • PCI-Express (PCIe) Configuration
    Default 2 PCIe 4.0 x16 FHHL slots 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)
  • M.2
    2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)

Drive Bays / Storage

  • Drive Bays Configuration
    Default: Total 10 bays 10 front hot-swap 2.5″ SATA drive bays
    Option A: Total 10 bays 10 front hot-swap 2.5″ NVMe* drive bays
    Option B: Total 10 bays 10 front hot-swap 2.5″ SAS* drive bays
    (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
  • M.2

System Cooling

  • Fans
    6 Counter-rotating 40x40x56mm Fan(s)

Power Supply

  • 2x 860W
    2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies
    Dimension (WxHxL)
    54.5 x 40.25 x 322 mm
    Input
    800W: 100-127Vac
    800W: 100-127Vac / 50-60Hz
    860W: 200-240Vac
    860W: 200-240Vdc / 50-60Hz
    860W: 200-240Vac / 50-60Hz
    +12V
    Max: 66.6A / Min: 0A (100Vac-127Vac)
    Max: 71.6A / Min: 0A (200Vdc-240Vdc)
    Max: 71.6A / Min: 0A (200Vac-240Vac)
    5V SB
    Max: 4A / Min: 0A
    Output Type
    Backplanes (gold finger)
Brand

Supermicro
Products Status

New
Applications

AI/Deep Learning Training and Inference, Cloud Computing, Financial Services & Healthcare Image Archives, Hosting & Content Delivery, Networking Appliance, Private & Hybrid Cloud
Max GPU

1
CPU Type

AMD EPYC 7002/7003 Series Processors
Total PCI-E Slots

4
Drives

10
Drive Form Factors

2.5"
Form Factor

1U
Generation

H12
Interface

NVMe (Optional), SAS (Optional), SATA (Native)
SATA

SATA (6Gbps)
LED

Device ActivityLAN 1 ActivityLAN 2 ActivityPower statusSystem information
Max GPU Count

Up to 2 double-width or 2 single-width GPUs
Serial

1 COM port(Rear)
Supported GPU

A2View GPU Options, NVIDIA PCIe: T4
Network Connectivity

EthernetView AIOM OptionsView AOC Options
LAN

1 RJ45 1 GbE Dedicated BMC LAN port
BIOS Type

AMI 256Mb SPI Flash EEPROM
Package

7.7" (H) x 23.7" (W) x 31.8" (D)
Depth

23.5" (597 mm)
Fans

6 Counter-rotating 40x40x56mm Fan(s)
Height

1.7" (43 mm)
Buttons

Power On/OffUID button
M.2

2 M.2 PCIe 4.0 x4 slots (M-key 2242/2260/2280/22110)
Memory

Slot Count: 16 DIMM slotsMax Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMMView Memory Options
Width

17.2" (437 mm)
Video

1 VGA port
Core Count

Up to 64C/128T
Note

Supports up to 280W TDP CPUs (Air Cooled)
Weight

Gross Weight: 40 lbs (18.14 kg)Net Weight: 25 lbs (11.34 kg)
Drive Bays Configuration

Default: Total 10 baysOption A: Total 10 baysOption B: Total 10 bays(*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
USB

2 USB 3.0 ports(rear)
Available Color

Black
PCI-Express (PCIe) Configuration

Default
IPMI

Support for Intelligent Platform Management Interface v.2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
CPU

Single Socket SP3AMD EPYC 7002/7003 Series Processors
Chipset

System on Chip
Environmental Spec.
